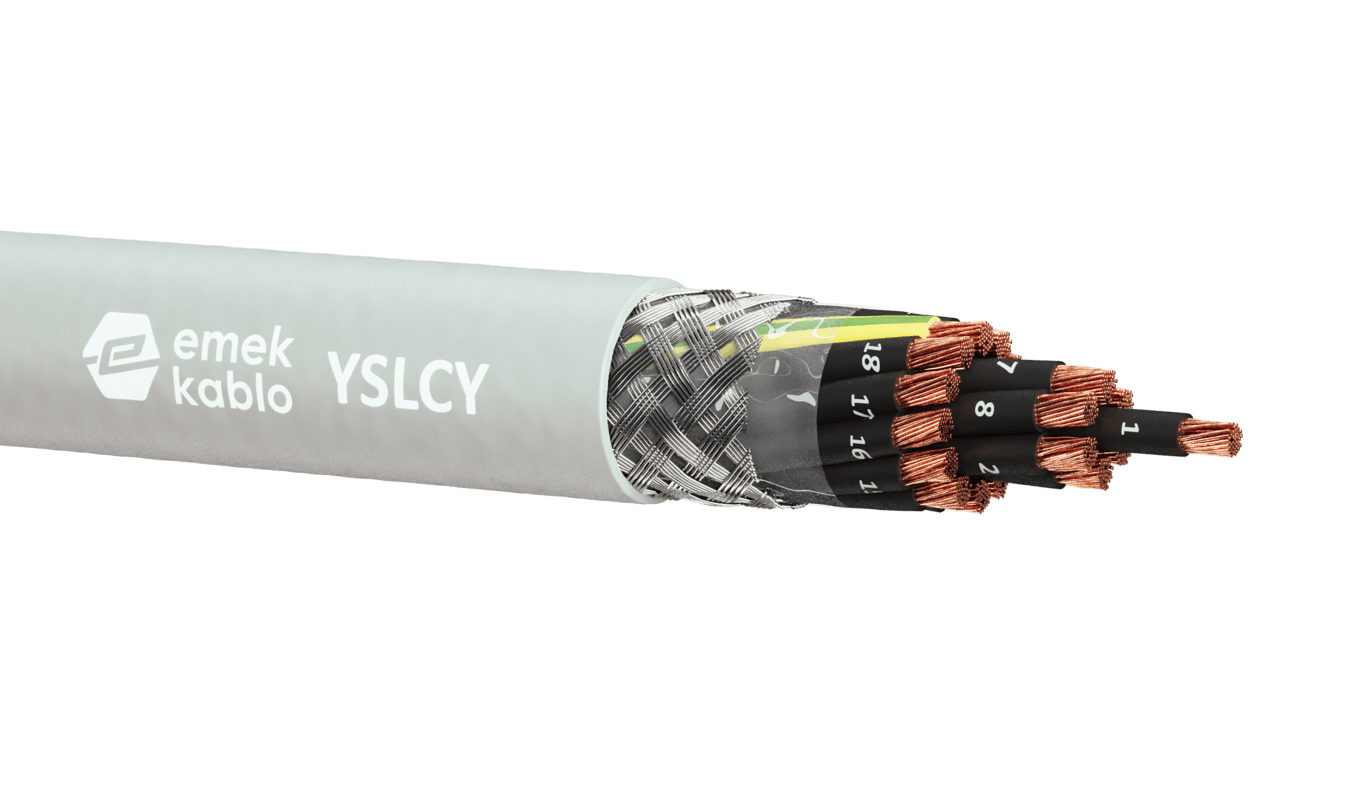

YSLCY cable, in industrial automation, mechanical engineering and energy distribution systems used, Flexible, shielded, low voltage control cable. Tinned copper braid screen, provides high protection against electromagnetic interference (EMI) and Ideal for applications requiring precise signal transmission.
It is used in dry, damp and wet places where there is no mechanical stress, and in external areas in fixed facilities if protected from sunlight. Its flexible structure and small diameter provide ease of use in internal systems of the cable. It is used in memory program control systems, measuring instruments, and especially in places where protection from electromagnetic external effects is required.
| CABLE STRUCTURE | TECHNICAL SPECIFICATIONS | |||
| Conductive | Fine stranded copper (Class 5) | Standards | VDE 0245 | |
| Insulation | PVC | Current Carrying Capacity | Table 2 | |
| Separator Tape | Polyester foil | Working Temperature | -5°C +70°C | |
| Screen | Braid of tinned copper wires | Working Voltage | 300 / 500V | |
| Cover | PVC | Test Voltage | 2000V | |
| Colour | Grey (RAL 7001) | |||
| Section (m2) | 0,50 (02) | 0,75 (03) | 1,00 (04) | 1,50 (05) | Cross Section (m2) | ||||
| NUMBER OF VEINS | OUTER DIAMETER | APPROX. NETWORK | OUTER DIAMETER | APPROX. NETWORK | OUTER DIAMETER | APPROX. NETWORK | OUTER DIAMETER | APPROX. NETWORK | STANDARD EXTENSION |
| mm | kg/km | mm | kg/km | mm | kg/km | mm | kg/km | mt | |
| 2 | 4,7 | 49 | 5,2 | 66 | 5,8 | 84 | 7,0 | 105 | 1000 |
| 3 | 5,0 | 63 | 6,5 | 83 | 6,5 | 101 | 7,4 | 140 | 1000 |
| 4 | 5,8 | 80 | 6,0 | 99 | 7,0 | 130 | 8,0 | 176 | 1000 |
| 5 | 6,3 | 92 | 6,6 | 123 | 7,7 | 165 | 8,5 | 288 | 1000 |
| 6 | 6,5 | 109 | 7,2 | 140 | 8,2 | 189 | 9,0 | 244 | 1000 |
| 7 | 7,0 | 120 | 7,8 | 171 | 9,1 | 213 | 10,0 | 288 | 1000 |
| 8 | 7,8 | 148 | 8,5 | 189 | 9,4 | 242 | 10,7 | 322 | 1000 |
| 10 | 8,3 | 171 | 9,1 | 227 | 10,0 | 294 | 12,0 | 400 | 1000 |
| 12 | 8,6 | 193 | 9,8 | 260 | 10,6 | 330 | 12,4 | 461 | 1000 |
| 16 | 9,6 | 252 | 11,0 | 336 | 11,6 | 427 | 13,9 | 582 | 1000 |
| 19 | 9,4 | 295 | 11,5 | 385 | 12,7 | 491 | 15,4 | 672 | 1000 |
| 24 | 12,2 | 350 | 13,6 | 491 | 14,7 | 777 | 18,0 | 871 | 1000 |
