Areas of Use
These cables are designed for fixed installations. They are suitable for the transmission of digital AES/EBU and dmx signals.
Multi-Channel Digital Audio Cables (Braided Shield)

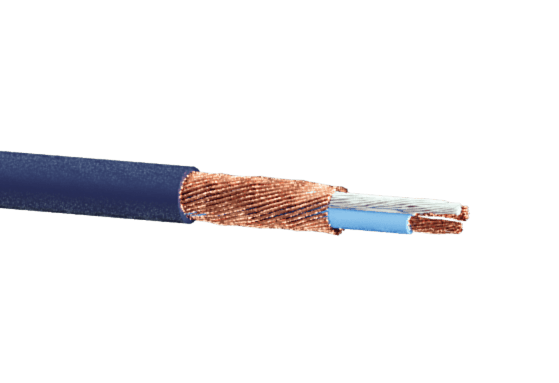

Multi-Channel Digital Audio Cables (Braided Shielded) are high-performance cables that allow multiple digital audio signals to be carried simultaneously in professional audio systems. The wrapped shield provides superior protection against electromagnetic interference (EMI) and radio frequency interference (RFI). With high-quality data transmission, it offers reliable and lossless audio transfer in studio, broadcasting and stage applications.
Cable Structure and Electrical Properties
CABLE STRUCTURE | ELECTRICAL SPECIFICATIONS | ||
Conductive | 7×0,20mm Cu (0.22mm2) | Conductor Resistance | < 88.6 Ohms/km |
Insulation | PO – Poliolefin | Capacity (Conductor/Conductor) | 46 pF/mt. |
Dual Shielding | 0.22mm2 Tinned drain wire + Cu braid | Characteristic Impedance | 110 Ohms |
Pair Cover | LSZH – Koyu mavi (Numaralı) | Weakening | 0.1 MHz – 0.6 dB/100 mt. 0.3 MHz – 0.9 dB/100 mt. 1 MHz – 2.1 dB/100 mt. 4 MHz – 5.8 dB/100 mt. 10 MHz – 10.5 dB/100 mt. 20 MHz – 16.0 dB/100 mt. |
Self | Veins twisted in layers |
|
|
General Screen | 0.22mm2 Tinned drain wire + Cu Braid screen |
|
|
Outer Cover | LSZH – Mat siyah |
|
|
Mechanical Properties
| Min. Bending Radius | Fixed Facility Mobile Facility | 10 x Outer Diameter 15 x Outer Diameter |
| Working Temperature | Still | -25°C +70°C |
| Energetic | – 5°C…..+70°C |
| SYMBOL | NUMBER OF DOUBLES | SECTION | OUTER DIAMETER | STANDARD PACKAGING |
| MDBS 2 | 2 | 0.22mm2 | Ø9.2mm | Custom length |
| MDBS 4 | 4 | 0.22mm2 | Ø10.7mm | Custom length |
| MDBS 8 | 8 | 0.22mm2 | Ø14.2mm | Custom length |
| MDBS 12 | 12 | 0.22mm2 | Ø17.5mm | Custom length |
| MDBS 16 | 16 | 0.22mm2 | Ø19.8mm | Custom length |
| MDBS 24 | 24 | 0.22mm2 | Ø25.2mm | Custom length |
| MDBS 32 | 32 | 0.22mm2 | Ø28.0mm | Custom length |
